Amana/Eden Wireless Occupancy Sensor With Integrated Door Switch

Product Description

Wireless Energy Management System for PTACs

The Eden system is the first of its kind, offering hotels, nursing homes, schools and any building with PTACs substantial benefits including reduced energy consumption, improved unit maintenance and easy installation.

Amana brand Eden PTACs can reduce energy costs by up to 35%!

The Eden system includes an in-room wireless thermostat and occupancy sensor developed in conjunction with Everex Communications. The in-room PTAC and peripherals are connected with the push of a button. There is no wiring to run or need for an electrician. To complete the system, all of the PTACs in a building can be wirelessly connected to a single hardware interface--the DL01G controller. Using the Eden Internet user interface, each PTAC can be viewed from a computer to check unit performance, temperature, unit settings, and check for maintenance issues.

Common Eden Components:

DD01E - Above the door occupancy sensor. Not required for Energy Management, but provides more acccurate occupancy detection for maximum energy savings.

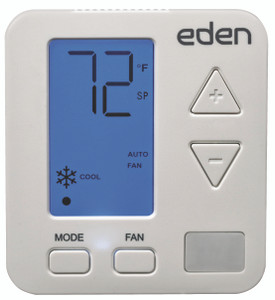

DS01G - Wireless Occupancy Sensing Thermostat. Required for Energy Management operation. No additional antenna required for Amana J or K Series PTAC (J or K in 7th digit of nomenclature, manufactured 2023 - Present). DT01G antenna required for Amana "G" series PTAC (G in 7th digit of nomenclature, manufactured 2010 - 2022). GT01H required for Amana AVH VTAC units and any non-Amana PTAC.

EOCS-1 - Subscription service for Eden Concierge. Required for Eden connectivity. One charge per room, covers 12 months of service. Amana will bill directly monthly charges after inital 12 month period.

DL01G - Central platform for Eden Concierge. Free with EOCS-1 charge and full Energy Management package

DT01G - Wireless Antenna for "G" Series Amana PTACs (G in 7th digit of nomenclature, manufactured 2010 - 2022). Required for DS01G connectivity

GT01H - Wireless antenna for Amana AVH VTAC and non-Amana PTACs

Specifications

• Equipped with Motion PIR (Passive Infrared Motion Sensor) technology and a magnetically triggered door switch

• Powered By 2 AA Batteries (Included)
• The above-the-door occupancy sensor communicates with the PTAC through a two-way encrypted radio frequency (RF) signal.
• Sensor is optional, but recommended for installations with a DL01G and Eden Concierge (EOCS-1). Sensor provide more accurate occupancy detecting to provide maximum energy ($) savings.

• Compatible with Eden Energy Management System.

Other features include:

• Hardwire options for 24 volt power
• Ability to wire recessed door switch for complex installations

Electrical Rating:

• 24 VAC (19-30 VAC)
• Easy access terminal block
