Amana J & K Series High Efficiency PTAC, HEC Model, Corner View

Amana High Efficiency PTAC (HEC) - Cooling/Electric Heat - 7,000-15,000 BTU/h

Amana
SKU:
HEC073K35AXXX
Availability:
0-8 Week Lead Time
(No reviews yet)
Current Stock:
$819.99
Adding to cart… The item has been added
Description

Specifications & Details



How to Identify Amana Nomenclature:

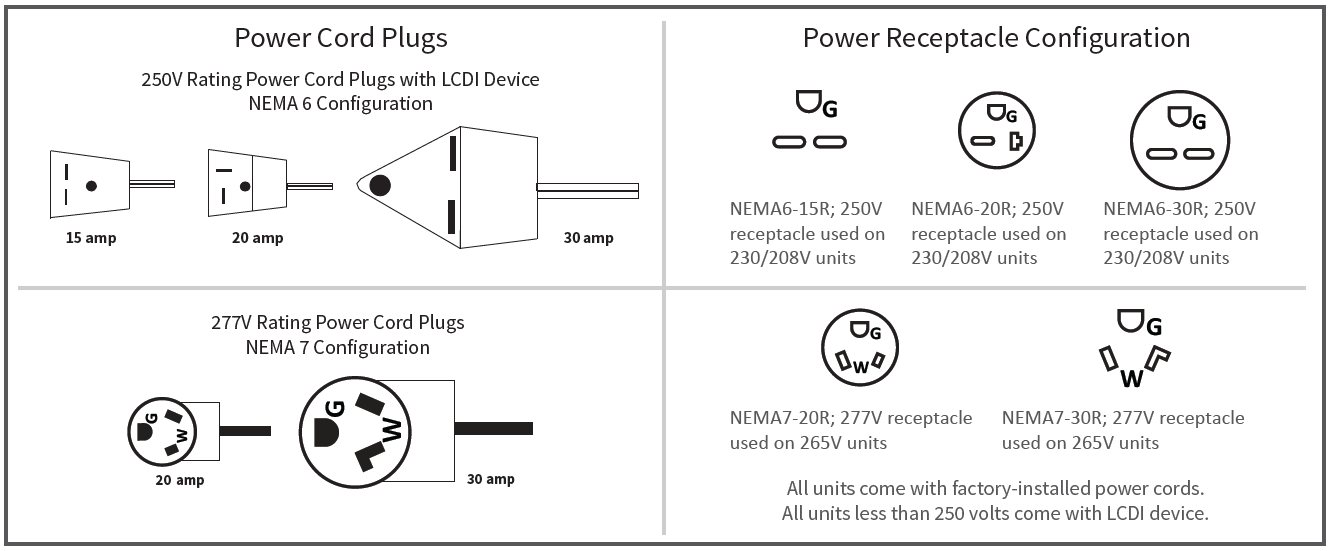

How to Identify Amana Power Cord Configurations:

Power Cord to Electric Heater Size Conversion:

208/230 Volt (250V Power Cords)

15 Amp - 1.5 kW & 2.5 kW

20 Amp - 3.5 kW

30 Amp - 5.0 kW

265 Volt (277V Power Cords)

20 Amp - 1.5 kW & 2.5 kW & 3.5 kW

30 Amp - 5.0 kW





Unit Product Data:

R410A Models

Model 1,7,9,10   HEC073K**AXXX HEC093K**AXXX HEC123K**AXXX HEC153K**AXXX HEC074K**AXXX HEC094K**AXXX HEC124K**AXXX HEC154K**AXXX
Voltage 1,3 230/208 230/208 230/208 230/208 265 265 265 265
Capacity (BTU/h) 7,000/7,000 9,200/9,000 11,700/11,400 14,800/14,500 7,000 9,200 11,800 14,800
Amps 11 3.1/3.1 4.2/4.2 6.1/6.1 7.1/7.1 2.8 3.6 4.9 6.2
Watts 11 545/530 720/705 1005/990 1390/1370 575 745 1,065 1,440
EER 13.1/13.4 12.1/12.2 11.4/11.5 10.3/10.3 12.7 11.9 11.1 10.3
Unit without Electric Heater
Min. Circuit Amps 2,5,11 3.7 4.9 7.4 8.5 3.2 4.4 5.8 7.4
CFM (Cool/Wet Coil) High 330 330 330 400 340 330 330 400
Low 245 264 245 314 245 264 245 314
CFM (Dry) High 337 332 329 417 337 332 329 417
Low 337 332 329 417 337 332 329 417
Ventilated Air, CFM (Fan Only)** 65** 65** 65** 65** 65* 65** 65** 65**
Dehumidifaction (Pints/Hr.) 1.7 2 1.7 4.4 1.7 2 1.7 4.4
Net Weight (lbs.) 106 102 108 113 103 102 108 113
Ship Weight (lbs.) 115 117 125 130 115 117 125 130

1. All 265-volt models must use an Amana brand sub-base (PTSB4**E) or an Amana brand hard-wire kit PTPWHWK4 and disconnect switch PSHW04A.

2. Minimum Circuit Ampacity (MCA) ratings conform to the National Electric Code; however, local codes should apply.

3. Minimum voltage on 230/208-volt models is 197 volts; maximum is 253 volts. Minimum voltage on 265-volt models is 239 volts; maximum is 292 volts.

4.Overcurrent protection for all units without electric heaters is 15 amps. Overcurrent protection on 265-volt models must be cartridge-style time-delay fuses (included and factory-installed on all Amana brand 265-volt chassis). See heater performance.

5.Heating capacity and efficiency based on unit operation without condensate pump.



6. Specify two-digit heater kW size to complete model number.

7. R-410A or R-32 refrigerant used in all systems.

8. All units meet or exceed ASHRAE 90.1 standards.

9. All units less than 250 volts have a Leak Current Detector Interrupter (LCDI) power cord and meet UL 484 standards.

10. Refer to electric heat performance data for total MCA and recommended overcurrent protection. Amps and watts notation refers to compressor only.

11. All models, specification, decriptions, and data are not verified and subject to change. Verify information with manufacturer prior to purchase.



Warranty
Manufacturers Standard Warranty: 1 Year Parts and Labor Full Unit 2-5 Years Parts 2-5 Years Part and Labor Sealed System * Confirm full warranty with manufacturer.
