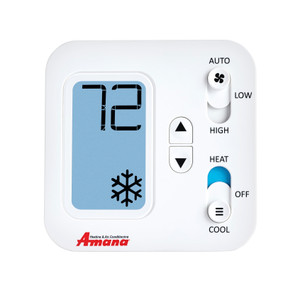

Amana PTAC Thermostat, PHWT-A200. Straight View

Amana Programmable Hardwired Thermostat

Amana
SKU:
PHWT-A200
Availability:
Free Shipping! Typically In Stock
(No reviews yet)
Shipping:
Free Shipping
Current Stock:
$116.99
Adding to cart… The item has been added
Description

Specifications & Details

DESCRIPTION AND COMPATIBILITY

The Amana PHWT-A200 is a programmable electronic thermostat, which can be used with the following heating/cooling applications:


• Cooling/ Conventional PTAC Units (PTC, HEC, PMC) with or without Electric Heat


• Heat Pump PTAC Units (PTH, HEH, PMH, AVH) with or without Electric Heat



SPECIFICATIONS

• Input Voltage: 19 to 30 VAC

• Output Rating: Max. 1.5A per terminal (3A total)

• Temperature Control: 45°F to 90°F (7°C to 32°C)

• Temperature Accuracy: ± 1°F (± 0.5°C)

• Wire Terminals:



C 24 VAC Common
GL Fan LOW Speed
GH Fan HIGH Speed
W2 2nd Stage or Auxiliary Heating Signal
W1 1st Stage Heating Signal
Y Cooling Signal
R 24 VAC Hot
B/O Reversing Valve



Warranty
Manufacturer's Warranty
