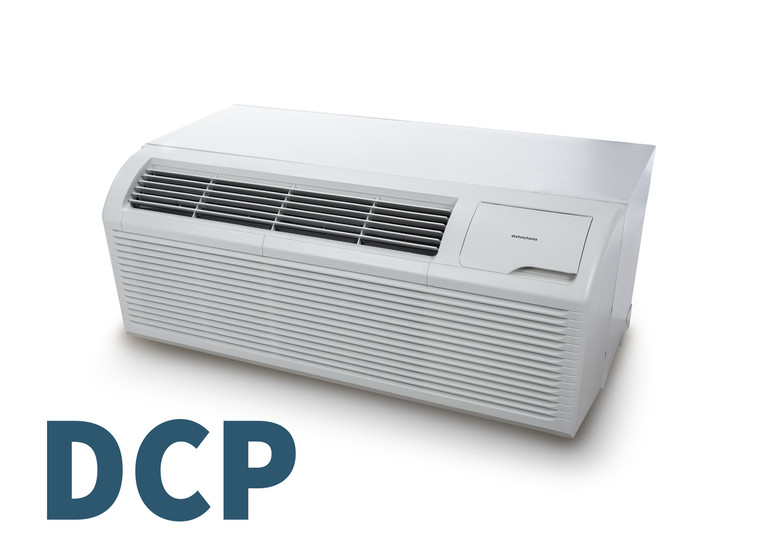

Distinctions PTAC, Corner Top Down View

Distinctions PTAC (DCP) - Cooling/Electric Heat - 7,000-15,000 BTU/h

Distinctions
SKU:
DCP073A35AA
Availability:
0-8 Week Lead Time
(No reviews yet)
Current Stock:
$637.99
Adding to cart… The item has been added
Description

Specifications & Details

Manufacturer Quick Description:



Sales, Support and Service You Can Trust



Five-Year Limited Warranty: Enjoy one of the most comprehensive warranties in the industry: First Year: parts & labor; Second through fifth years: parts & labor on certain sealed system components; second through fifth years: on certain functional parts only. For complete warranty details, visit www.distinctions-ptac.com.

Distinctions PTAC are stocked and sold from the same warehouse as the Amana® Brand PTAC products you have come to love over the years.





Features:

Dual Fan Motors: Allows precise independent fan speed operation while providing quiet operation.

LCDI Power Cord Included: No need to match power cord type to unit size.

3-Speed Fan: Provide precise comfort control to your guests.

Constant Fan: Take advantage of each unit’s dual options—select continuous fan operation or cycle the fan ON and OFF with the thermostat. Our 7-button design allows guests to select fan.

Wired Thermostat Compatible: Wire your PTAC with any standard thermostat for better temperature control



Advantages:

Energy Efficiencies: With EERs up to 13.1 and COPs up to 3.4, our unit’s high efficiencies may qualify you for many of the rebates offered by electrical power companies.

Automatic Emergency Heat: No more “my unit is not heating” complaints during the middle of the night. Heat pump units will automatically switch over to electric resistance heat if the heat pump compressor system fails or if the heating load is greater than the unit capacity.

Easy Pull-Out Filters: Our filters are washable and easy to maintain.

Condensate Dispersion System: Our condensate dispersion system removes condensate from indoor cooling operation by throwing water directly on to the outdoor coil for rapid evaporation and increased cooling efficiencies.





How to Identify PTAC Power Cord Configurations:

Power Cord to Electric Heater Size Conversion:

208/230 Volt (250V Power Cords)

15 Amp - 1.5 kW & 2.5 kW

20 Amp - 3.5 kW

30 Amp - 5.0 kW

265 Volt (277V Power Cords)

20 Amp - 1.5 kW & 2.5 kW & 3.5 kW

30 Amp - 5.0 kW



Unit Product Data:

R410A Model

Model1,7,9,10,11   DCP073A25AA DCP073A35AA DCP093A25AA DCP093A35AA DCP093A50AA DCP123A25AA DCP123A35AA DCP123A50AA DCP153A50AA DCP153A35AA
COOLING
Voltage1,3 V 208/230 208/230 208/230 208/230 208/230 208/230 208/230 208/230 208/230 208/230
Capacity Btu/h 7200/7000 7200/7000 9200/9000 9200/9000 9200/9000 12000/11800 12000/11800 12000/11800 14700/14500 14700/14500
Amps11 A 2.45/2.60 2.45/2.60 3.54/3.83 3.54/3.83 3.54/3.83 4.9/5.3 4.9/5.3 4.9/5.3 6.03/6.58 6.03/6.58
Watts11 W 550/535 550/535 814/796 814/796 814/796 1121/1102 1121/1102 1121/1102 1390/1370 1390/1370
EER Btu/h/W 13.1 13.1 11.3 11.3 11.3 10.7 10.7 10.7 10.6 10.6
CFM (Cool/Wet Coil) High Speed   334 334 435 435 435 384 384 384 376 376
CFM (Cool/Wet Coil) Low Speed   236 236 341 341 341 311 311 311 315 315
CFM (DRY) High Speed   334 334 435 435 435 384 384 384 376 376
CFM (DRY) Low Speed   237 237 341 341 341 311 311 311 315 315

UNIVERSAL
Vent Door CFM   61.1/57.6/50.6 61.1/57.6/50.6 61.1/57.6/50.6 61.1/57.6/50.6 61.1/57.6/50.6 62/60/56 62/60/56 62/60/56 62/60/56 62/60/56
Dehumidification (Pints/Hr)   0.63 0.63 1.18 1.18 1.18 2.75 2.75 2.75 4.55 4.55
Net Weight lbs 101.63 101.63 98.1 98.1 98.1 108.69 108.69 108.69 113.1 113.1
Ship Weight lbs 112.43 112.43 108.69 108.69 108.69 119.49 119.49 119.49 122.8 122.8

ELECTRIC HEAT
Voltage V 208/230 208/230 208/230 208/230 208/230 208/230 208/230 208/230 208/230 208/230
Heater Size (kW)   2.5 3.5 2.5 3.5 5 2.5 3.5 5 5 3.5
Heating Capacity Btu/h 7800/6300 10900/8900 7800/6300 10900/8900 15000/12200 7800/6300 10900/8900 15000/12200 15000/12200 10900/8900
Watts W 2,535/2,080 3519/2850 2,535/2,080 3535.5/2897 4769/3953 2,535/2,080 3535/2900 4769/3953 4769/3953 3535/2900
Amps2,5,11 A 10.8/9.8 15.30/13.70 10.8/9.8 15.3/13.7 22/19.7 10.8/9.8 15.3/13.7 22/19.7 22/19.7 15.3/13.7

1. All 265-volt models must use an Amana brand sub-base (PTSB4**E) or an Amana brand hard-wire kit PTPWHWK4 and disconnect switch PSHW04A.

2. Minimum Circuit Ampacity (MCA) ratings conform to the National Electric Code; however, local codes should apply.

3. Minimum voltage on 230/208-volt models is 197 volts; maximum is 253 volts. Minimum voltage on 265-volt models is 239 volts; maximum is 292 volts.

4.Overcurrent protection for all units without electric heaters is 15 amps. Overcurrent protection on 265-volt models must be cartridge-style time-delay fuses (included and factory-installed on all Amana brand 265-volt chassis). See heater performance.

5.Heating capacity and efficiency based on unit operation without condensate pump.



6. Specify two-digit heater kW size to complete model number.

7. R-410A or R-32 refrigerant used in all systems.

8. All units meet or exceed ASHRAE 90.1 standards.

9. All units less than 250 volts have a Leak Current Detector Interrupter (LCDI) power cord and meet UL 484 standards.

10. Refer to electric heat performance data for total MCA and recommended overcurrent protection. Amps and watts notation refers to compressor only.

11. All models, specification, decriptions, and data are not verified and subject to change. Verify information with manufacturer prior to purchase.



Warranty
Manufacturers Standard Warranty: 1 Year Parts and Labor Full Unit 2-5 Years Parts 2-5 Years Part and Labor Sealed System * Confirm full warranty with manufacturer.
