Specifications & Details

Manufacturer Quick Description:

The GE Zoneline PTAC offers superior noise reduction and sound quality for the ultimate in guest comfort. ZONELINE with IEQ (Indoor Environmental Quality) uses UV-C LIGHT TECHNOLOGY that reduces viral concentrations. The UV-C light is designed to treat indoor air as it passes through the system, reducing 93.9% of airborne viruses within 180 minutes.**

It’s easy to take control of your properties with the industry’s most powerful software with SmartHQTM Management and Service, you can manage your Zoneline from anywhere.

**GE Appliances tested a Phi-X174 bacteriophage virus, nebulized in a sealed test chamber (10´x 10´x 10´ (1000 ft 3)) with an average temperature of 68° F and relative humidity of 50.3%. Air sampling was taken every 30 minutes with the Zoneline PTAC on high speed with a new UVC kit active over 3 hours & compared to natural decay results. Testing was conducted at a nationally accredited laboratory.

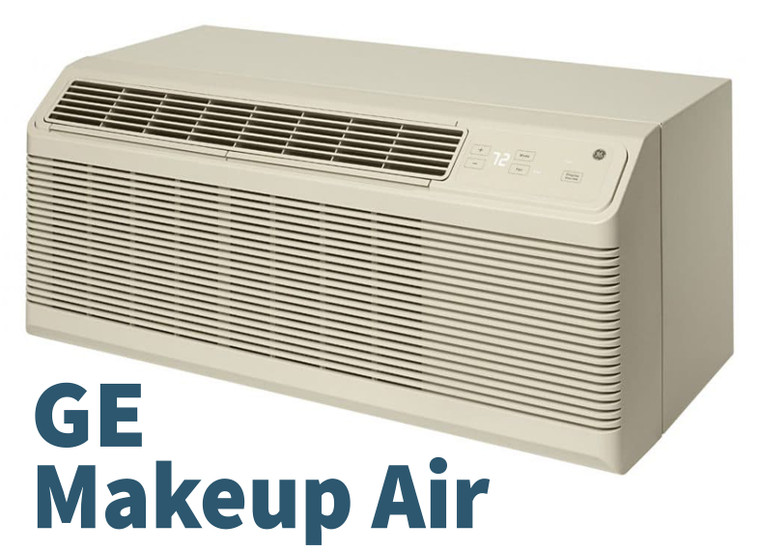

AZ45 GE ZONELINE® WITH MAKEUP AIR
Includes all AZ45 features plus:
• Delivers 25-50 CFM of continuous, Makeup Air
• Dehumidifies incoming air when outdoor relative
humidity is above 55% and outdoor temperatures
are above 50 degrees F
• Motorized vent door
• May reduce the need for rooftop units

AZ65 SERIES | HEAT PUMP
WITH MAKEUP AIR
Includes all resistant heat
Makeup Air features, plus:
• Staged heating
• Heat pump with back
up resistance heat option
• Reverse cycle defrost

Note: Because Makeup Air increases room BTU load requirements and requires additional PTAC cooling or heating,
the building’s electrical needs may be impacted.
Note: Makeup Air models listed above are not recommended for installation within two miles of coastal areas.
Note: It is strongly recommended to install Makeup Air with wall thermostats.

How to Identify GE PTAC Nomenclature:

GE PTAC Nomenclature

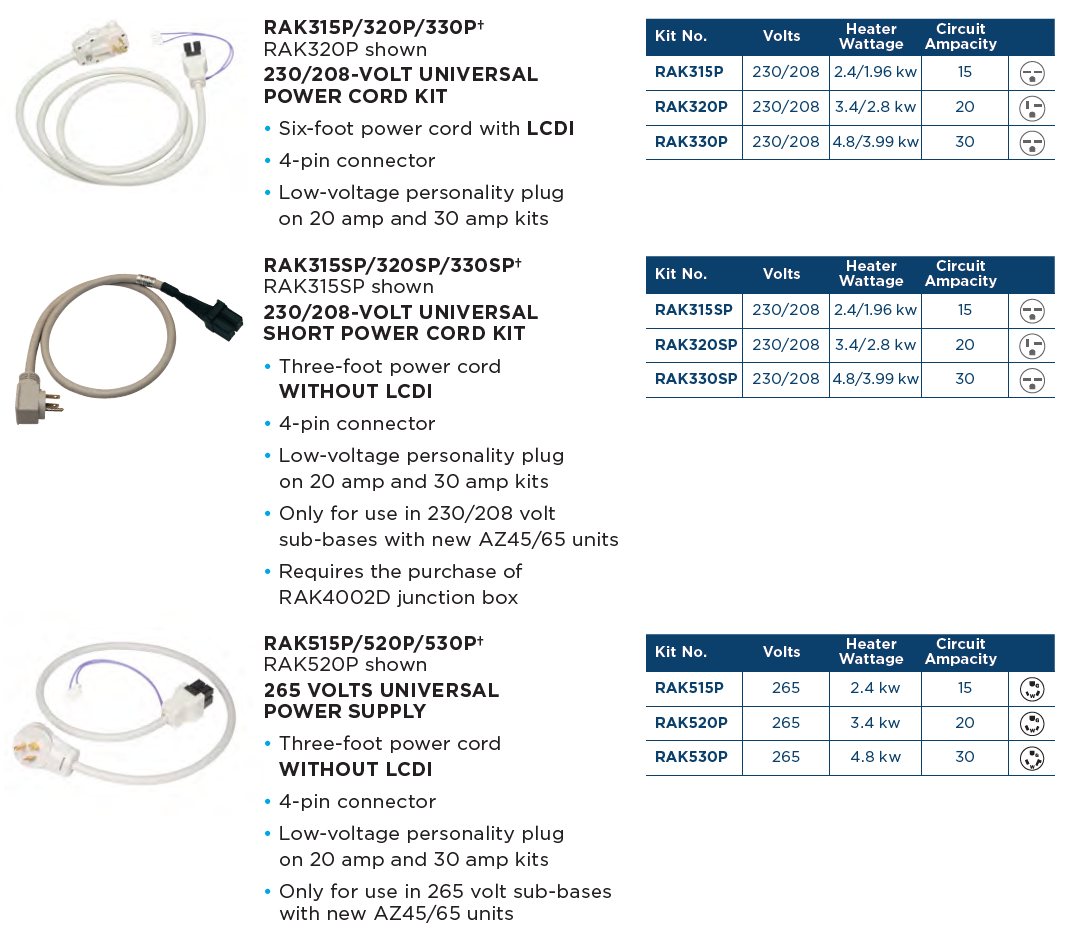

How to Identify GE Power Cord Configurations:

*Note: Power Cords must be purchased separately for GE Zoneline PTAC Units.

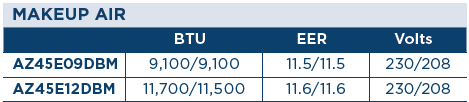

Unit Product Data:

Cooling with Electric Heat Models

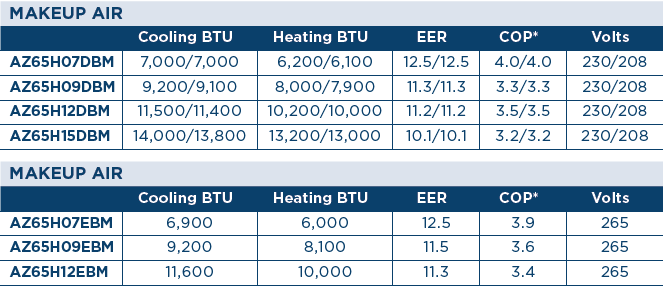

Heat Pump with Backup Electric Heat Models

*All Data based on Standard Model and is subject to change at any time. Please verify efficiencies prior to purchase
